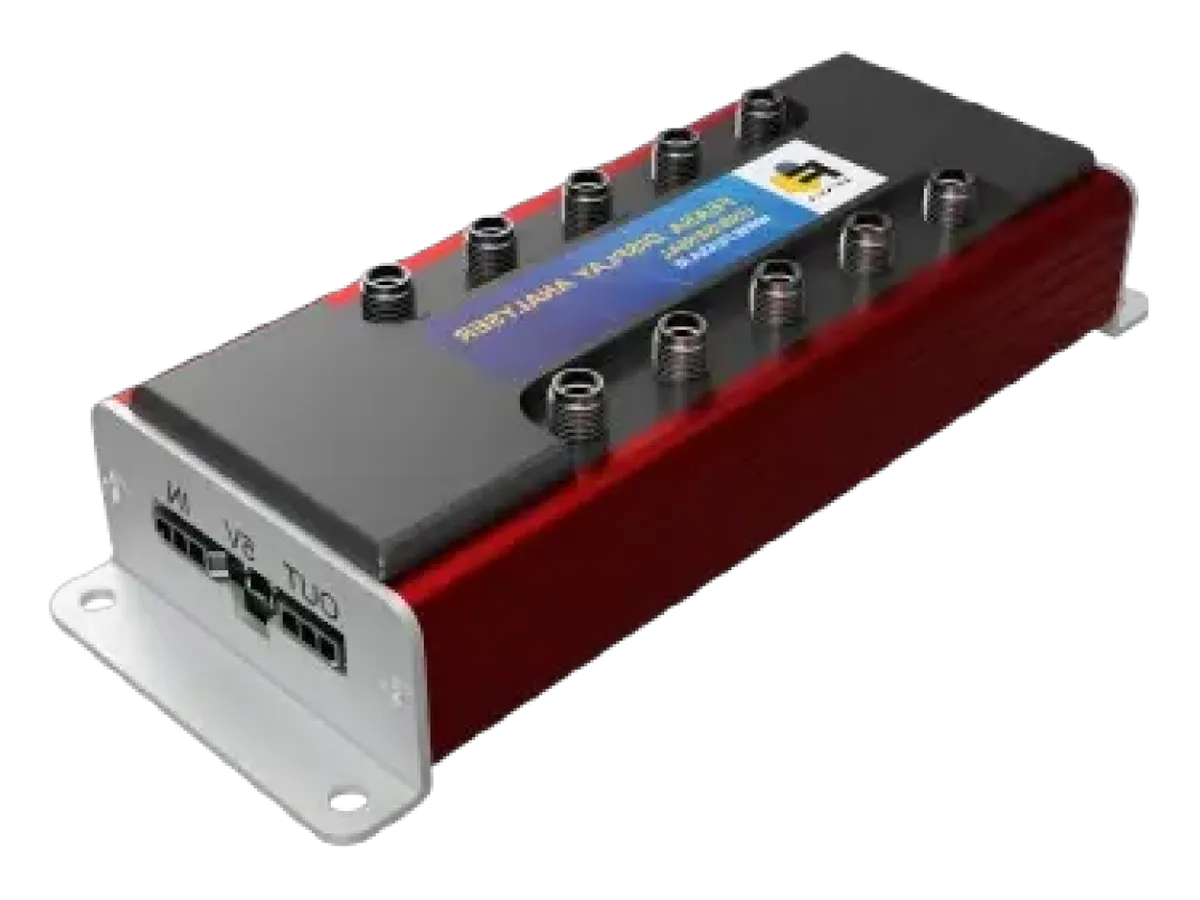

Overview
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat.
Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum. Curabitur vitae sapien eget justo facilisis gravida. Integer posuere erat a mauris fermentum, sed cursus augue tincidunt. Vivamus suscipit ligula vel nunc consequat quis varius risus tempor. Donec vitae felis sed nulla arcu.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet. Duis sagittis ipsum.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor

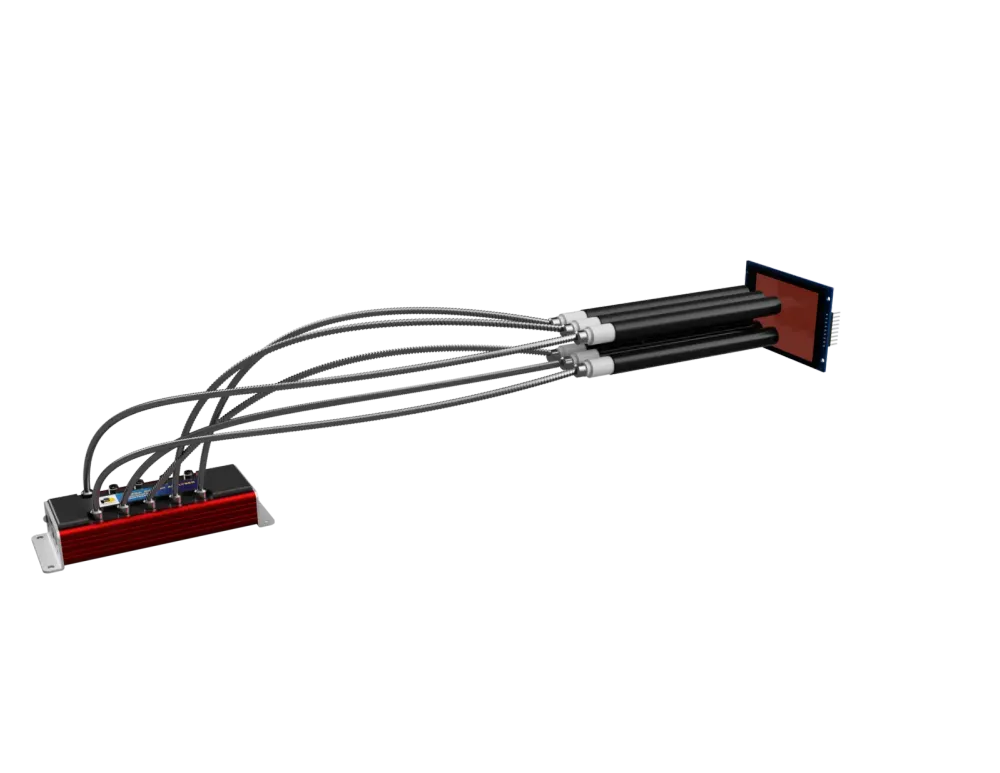

Applications
Where our Display Analyser is commonly used.
Automotive
Infotainment and Navigation Displays
Automotive
Instrument Cluster Displays
Display Production
Flat Panel Quality Control
End-of-Line
Final Assembly Validation

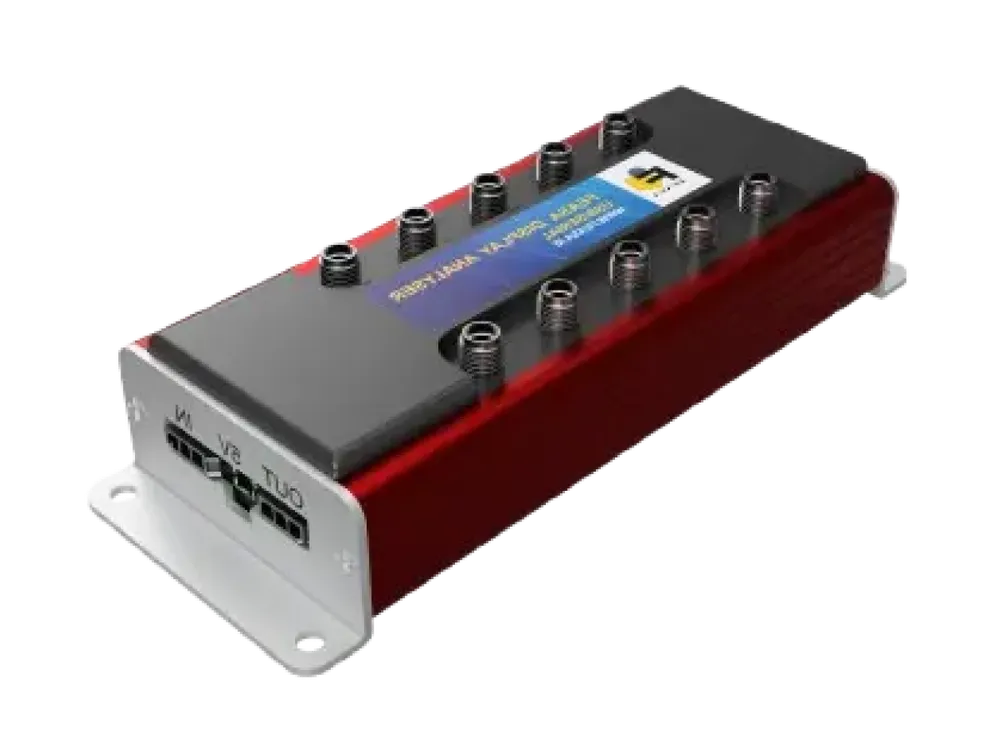

Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels per module | Up to 6 | Daisy Chain for more channels |
| Maximum luminance | 10,000 cd/m² | |
| Minimum luminance | 0.01 cd/m² | |
| Contrast ratio | Up to 200,000:1 | |
| Display homogeneity | cd/m² | Uniformity across measurement points |
| Chromaticity | x, y | CIE xy coordinates |
| Luminance accuracy (RGB backlit) | < 15% (±4% Illuminant A) | At x=0.333, y=0.333 |
| xy Chromaticity accuracy | ±0.01 (~±0.006 Illuminant A) | At x=0.333, y=0.333 |
| Chromaticity xy repeatability | ±0.0030 | Precision measurement |
| Intensity repeatability | < 1% | Excellent consistency |
| Supply | USB powered | Current drawn 60 mA |
| Interface | USB, RS232, Daisy Chain | Flexible connectivity |
| Dimensions | 124 × 57 × 75 mm | Analyser module only |
| Fiber length | 0.6 m | Patch cord per channel |
| Fiber diameter | 5.2 mm incl. cladding | Armoured patch cord |
| Min. bend radius | 25 mm | |
| Operating temperature | 0–40°C | Narrower range than other Feasa products |
| Calibration | Spectrometer + LU07, or known good display | |
| Compliance | CE, RoHS | EU standards |
| Order codes | 01-D2 · 03-D2 · 06-D2 | Confirm D2/D3 suffix with engineering |
| Required accessories | LU07 Luminance Head · FP05 Patch Cord | Must be ordered with the module |
Feasa Display Analyser Software Suite
GUI, DLL and LabVIEW — included with every analyser
- GUI — Graphical interface for display measurement setup and results review
- Command line interface — Sample CLI for scripted production test integration
- C and C++ examples — Application examples for custom integration
- DLL and LabVIEW — Support for NI platform and automated test systems
- Connectivity — USB and RS232 communication — Daisy Chain for multi-module systems
- Calibration workflow — Fixture-based Spectrometer calibration or known-good display calibration
