Applications
Where our Infrared Analyser is commonly used.
Automotive Sensing
Rain Sensors, ADAS and LiDAR

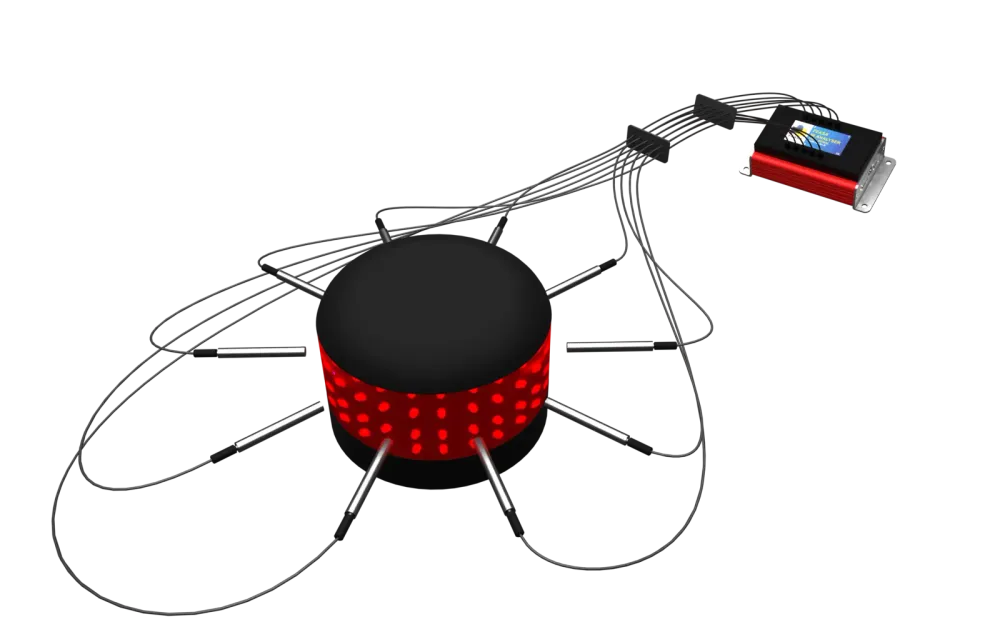

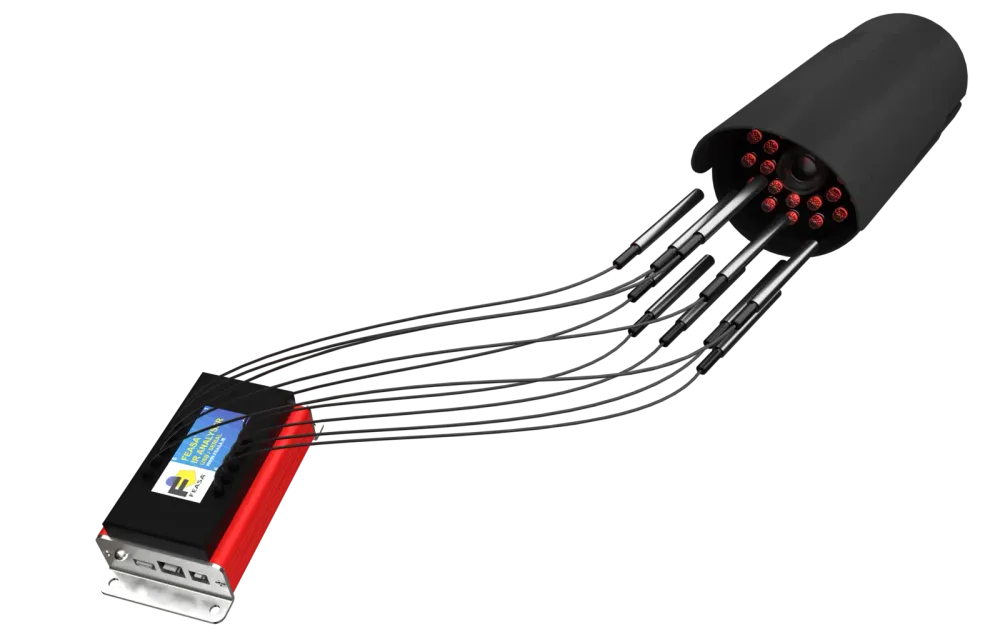

Security & Surveillance
IR Illumination Arrays
Industrial Sensing
Proximity and Object Detection
Industry & Education
IR Grids, Whiteboards and R&D
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 10, 20 | Simultaneous measurement |
| Wavelength range — glass (IR) | 700–950 nm | Full IR range |
| Wavelength range — plastic (IRP) | 700–900 nm | NIR range only |
| Wavelength accuracy (700–750nm) | ±30 nm | |
| Wavelength accuracy (751–900nm) | ±10 nm | Best accuracy band |
| Wavelength accuracy (901–950nm) | ±30 nm | Glass fibre only |
| Wavelength repeatability | < 1 nm | Excellent consistency |
| Intensity repeatability | < 1% | Precision measurement |
| Supply voltage | 5.0V | USB bus powered |
| Supply current | 180 mA | Low power consumption |
| Dimensions (3 & 10 ch) | 104.5 × 54 × 39 mm | Compact design |
| Dimensions (20 ch) | 145 × 54 × 39 mm | Larger multichannel |
| Fiber diameter — glass | 1.1 mm | IR model |
| Fiber diameter — plastic | 1.0 mm | IRP model |
| Min. bend radius — glass | 50 mm | More rigid than plastic |
| Min. bend radius — plastic | 15 mm | More flexible for tight geometries |
| Operating temperature | 0–50°C | Industrial range |
| Interface | USB 2.0, RS232, Daisy Chain | Up to 30 units per port |
| Required optical head | OH-8IR (or OH-8A-IR) | Not interchangeable with visible heads |
| Compliance | CE, RoHS | EU standards |
| Model numbers — glass | 3IR · 10IR · 20IR | 700–950nm |
| Model numbers — plastic | 3IRP · 10IRP · 20IRP | 700–900nm |
Feasa Terminal + User Gains Software
Both included with every analyser
- Feasa Terminal — Command-line control with script processor and command save/recall
- User Gains Software — Automatic or manual per-channel intensity adjustment
- Saved adjustments — Adjustments saved to file and recalled on subsequent sessions
- LabVIEW drivers — Provided for NI platform integration
- DLL — Custom testing integration in C, C++, Python
- Connectivity — USB and RS232 compatible — Daisy Chain for multi-unit systems
