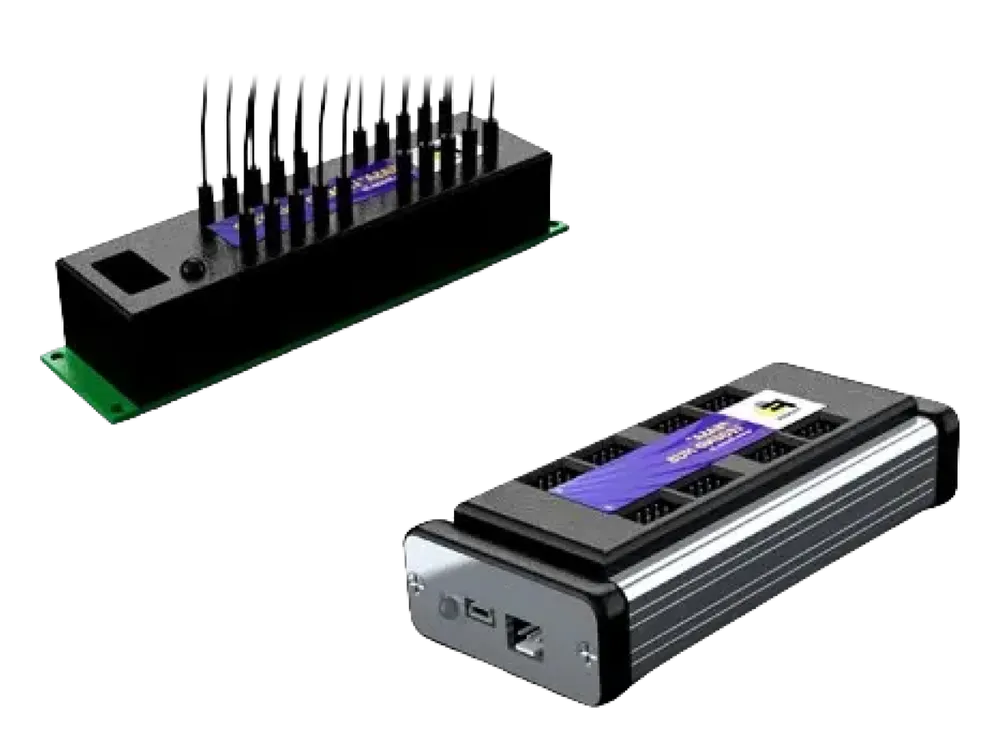

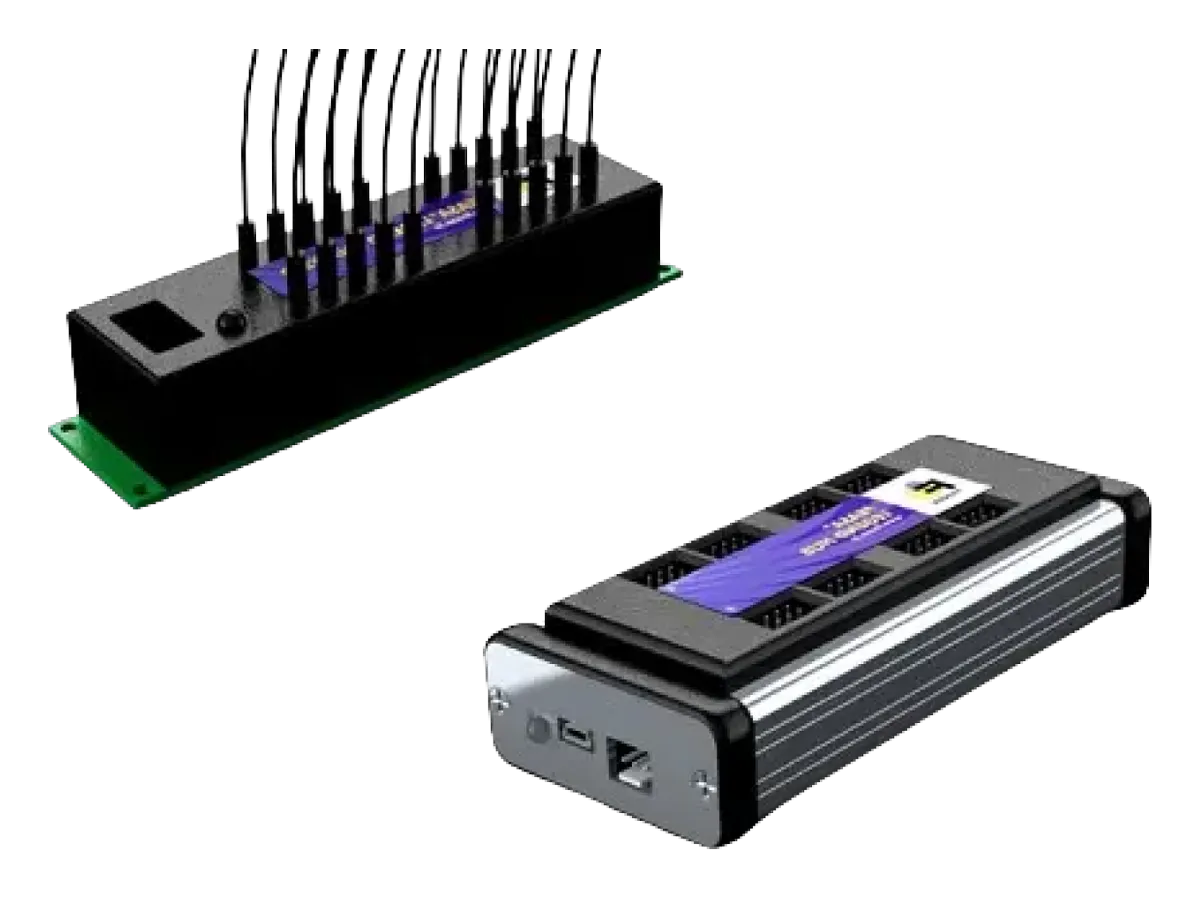

Overview
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat.
Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum. Curabitur vitae sapien eget justo facilisis gravida. Integer posuere erat a mauris fermentum, sed cursus augue tincidunt. Vivamus suscipit ligula vel nunc consequat quis varius risus tempor. Donec vitae felis sed nulla arcu.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet. Duis sagittis ipsum.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor

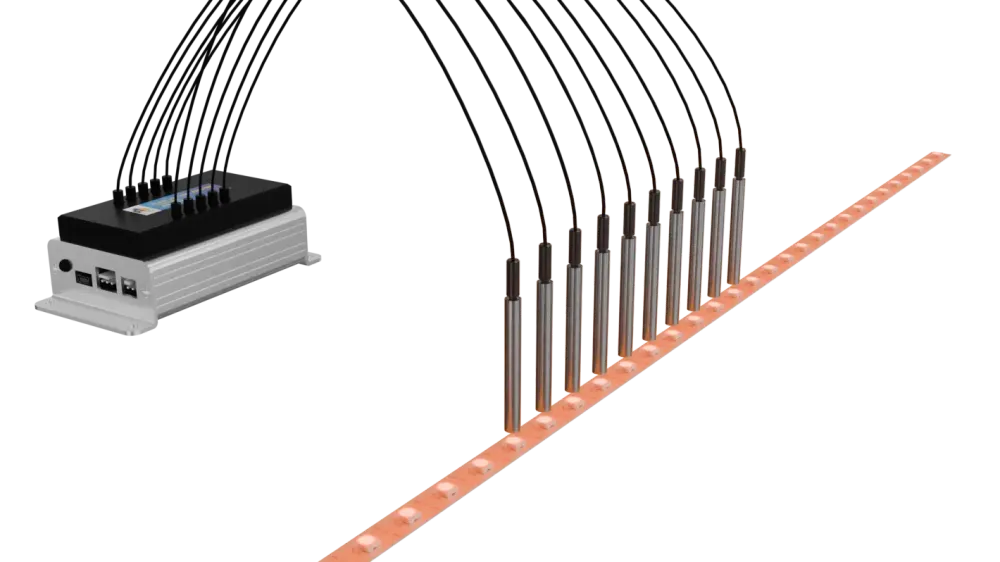

Applications
Where our Legend Analyser is commonly used.
Automotive
Rear Lamps and Light Clusters
Automotive Interiors
Lightguides and Instrument Panels
Test Platforms
ICT and Functional Test
Aviation & Indicators
Avionics, Signals and Landing Lights

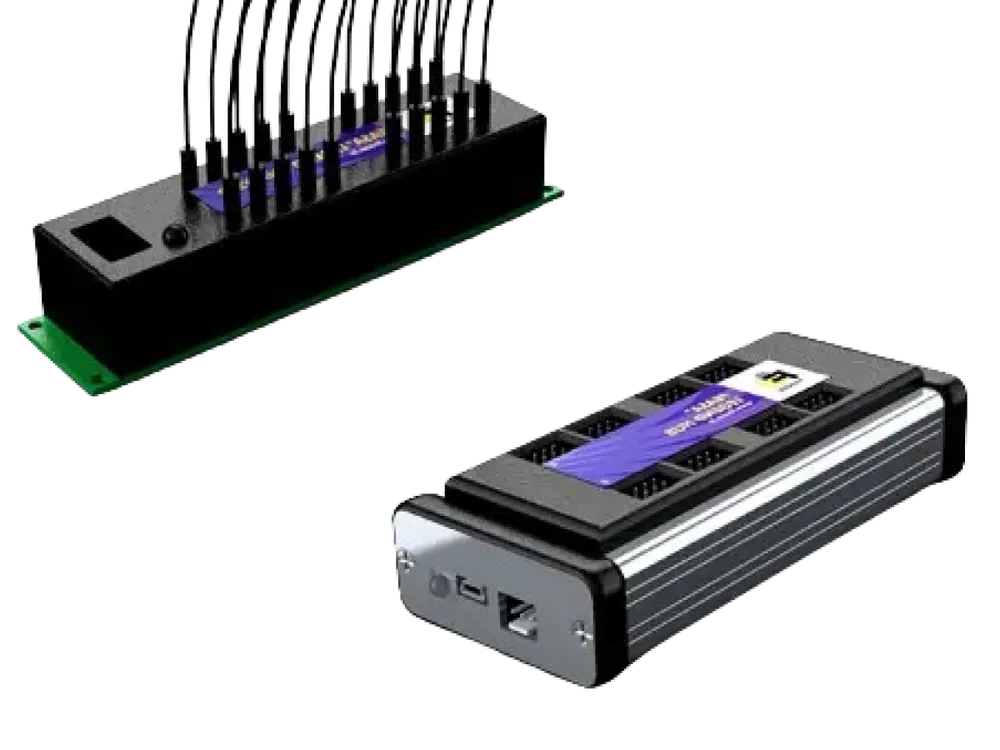

Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Max channels (single Hub) | Up to 160 | 8 Satellites × 20 LEDs each |
| Max channels (multiple Hubs) | Unlimited | Hubs can be combined |
| Wavelength range | 450–650 nm | Visible spectrum |
| Dominant wavelength accuracy | ±2 nm | After adjustment |
| CCT accuracy | ±200K @ 2856K | After adjustment |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | After adjustment |
| Repeatability (DW) | ±1 nm | Excellent consistency |
| Repeatability (CCT) | ±50K @ 2856K | Lab-grade stability |
| Repeatability (CIE xy) | ±0.0015 | Precision measurement |
| Test time (160 LEDs) | 0.8 seconds | All channels in parallel |
| Board version memory | 32 versions | Stored in Feasa Limits GUI |
| Supply voltage | 5.0V | Power supply included |
| Supply current | 200 mA per Satellite | Per 20-channel module |
| Hub dimensions | 130 × 55 × 30 mm | |
| Satellite dimensions | 120 × 29 × 50 mm | Up to 8 per Hub |
| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 1.0 mm incl. cladding | Plastic optical fibre |
| Min. bend radius | 15 mm | |
| Operating temperature | 0–50°C | Industrial range |
| PC interface | USB, RS232 | Hub to PC connection |
| Hub to Satellite | 6-pin ribbon cable | Included |
| Stand-alone interface | 10-pin connector | Limit selection + pass/fail output |
| Output formats | HSI, DW, CCT with Δuv, CIE xy | Via USB / RS232 |
| Compliance | CE, RoHS | EU standards |
| Order codes | Legend 60 – 160 · >160 | By total channel count |
| Component models | HUB · 10L · 20L | Satellite channel variants |

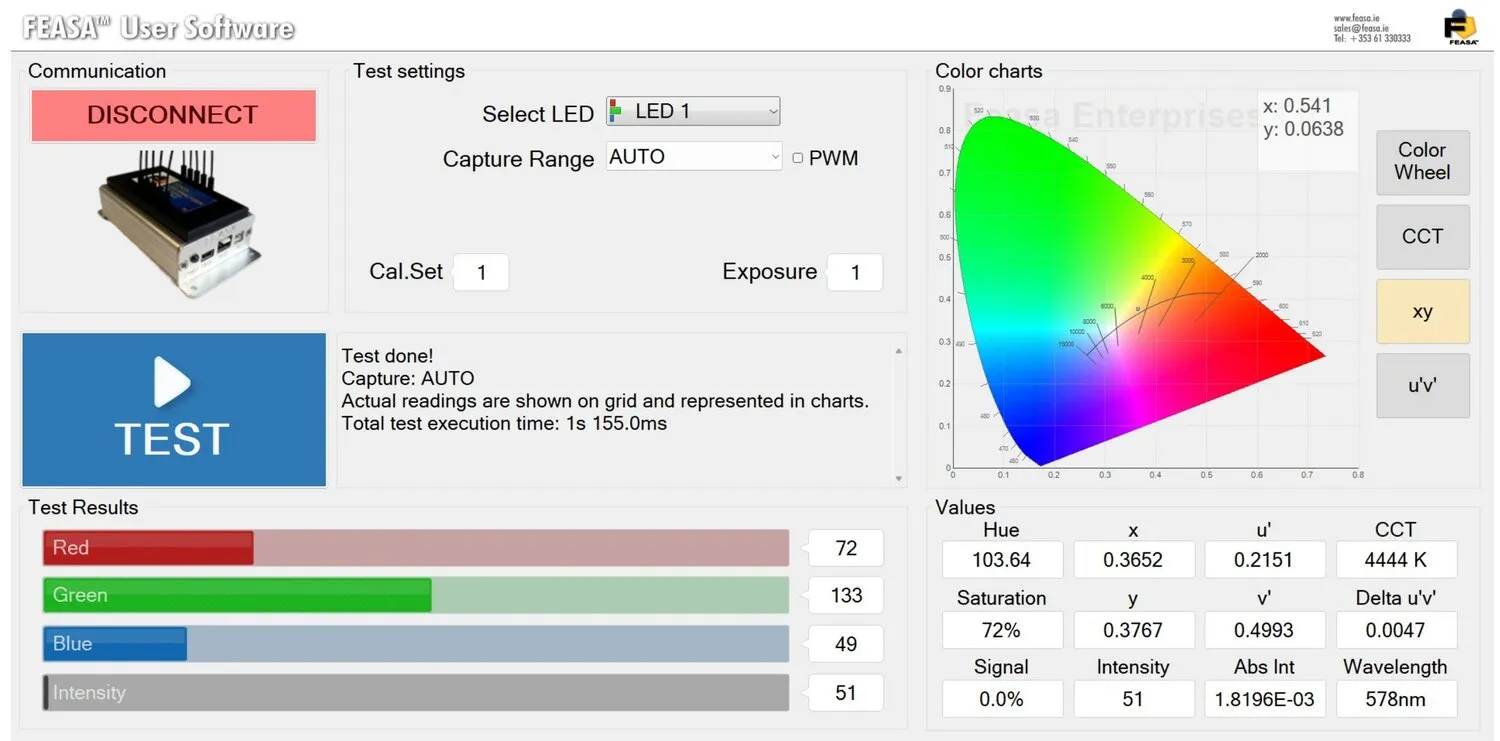

Feasa Legend Software Suite
Feasa Limits GUI and DLL — included with every system
- Feasa Limits GUI — Graphical interface for automatic learn and store of pass/fail criteria
- 32-board memory — Stores up to 32 different board versions — fast changeover between variants
- Real-time display — HSI, Dominant Wavelength, CCT and CIE xy per channel
- Data logging — Full data logging and export for SPC and traceability reporting
- DLL — Custom test integration — programming examples in LabVIEW and C++
- Stand-alone mode — Pass/fail at fixture via 10-pin connector — no PC required
