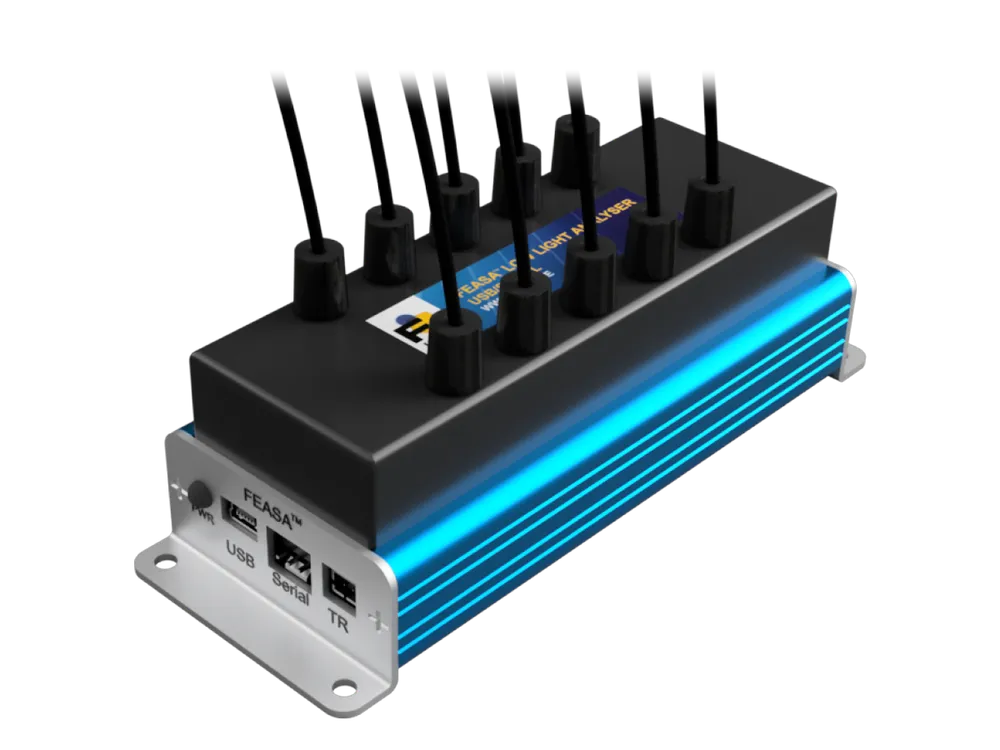

Overview
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat.
Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum. Curabitur vitae sapien eget justo facilisis gravida. Integer posuere erat a mauris fermentum, sed cursus augue tincidunt. Vivamus suscipit ligula vel nunc consequat quis varius risus tempor. Donec vitae felis sed nulla arcu.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer nec odio. Praesent libero. Sed cursus ante dapibus diam. Sed nisi. Nulla quis sem at nibh elementum imperdiet. Duis sagittis ipsum.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor

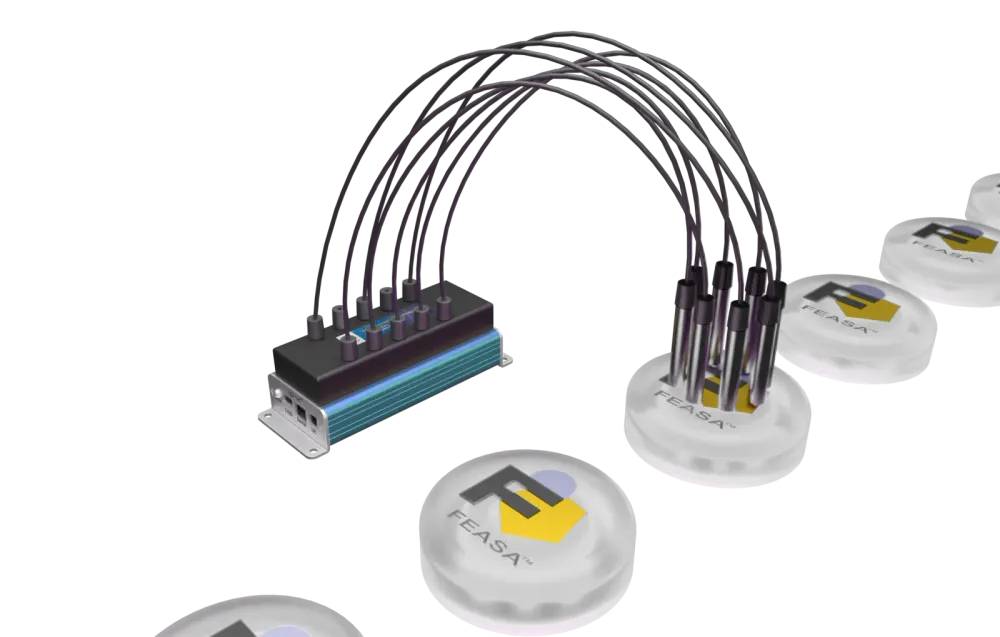

Applications
Where our Low Light Analyser is commonly used.
Automotive
Backlit Switches and Climate Controls
Automotive
Steering Wheel Controls
Automotive Interiors
LED Lightguides and Panels
Consumer & Industrial
Backlit Control Panels

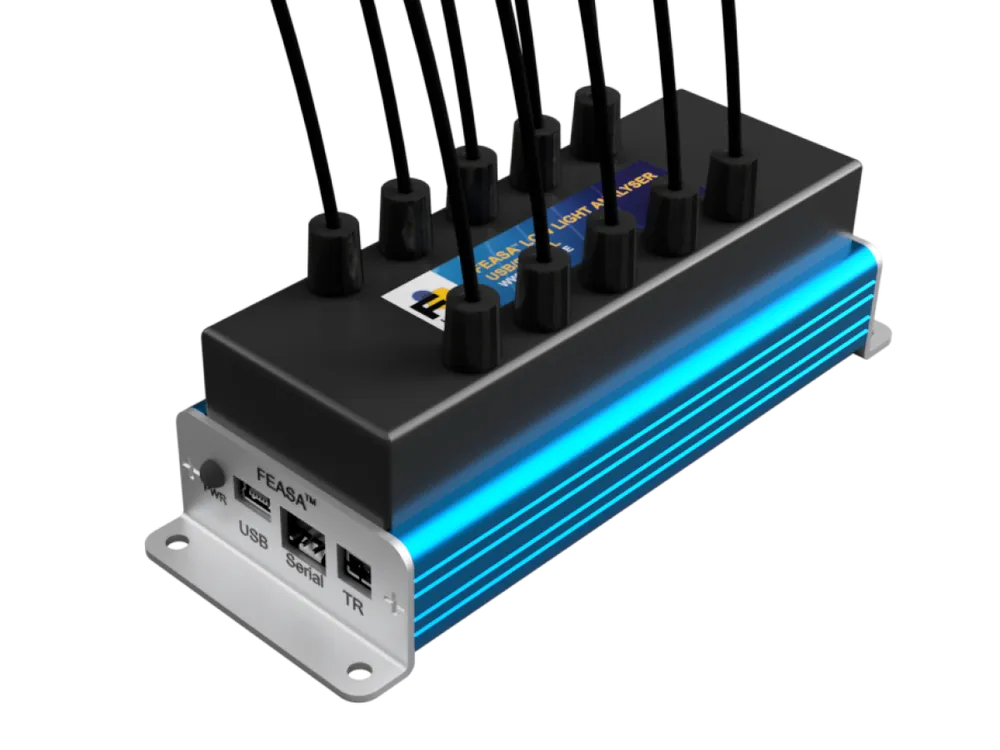

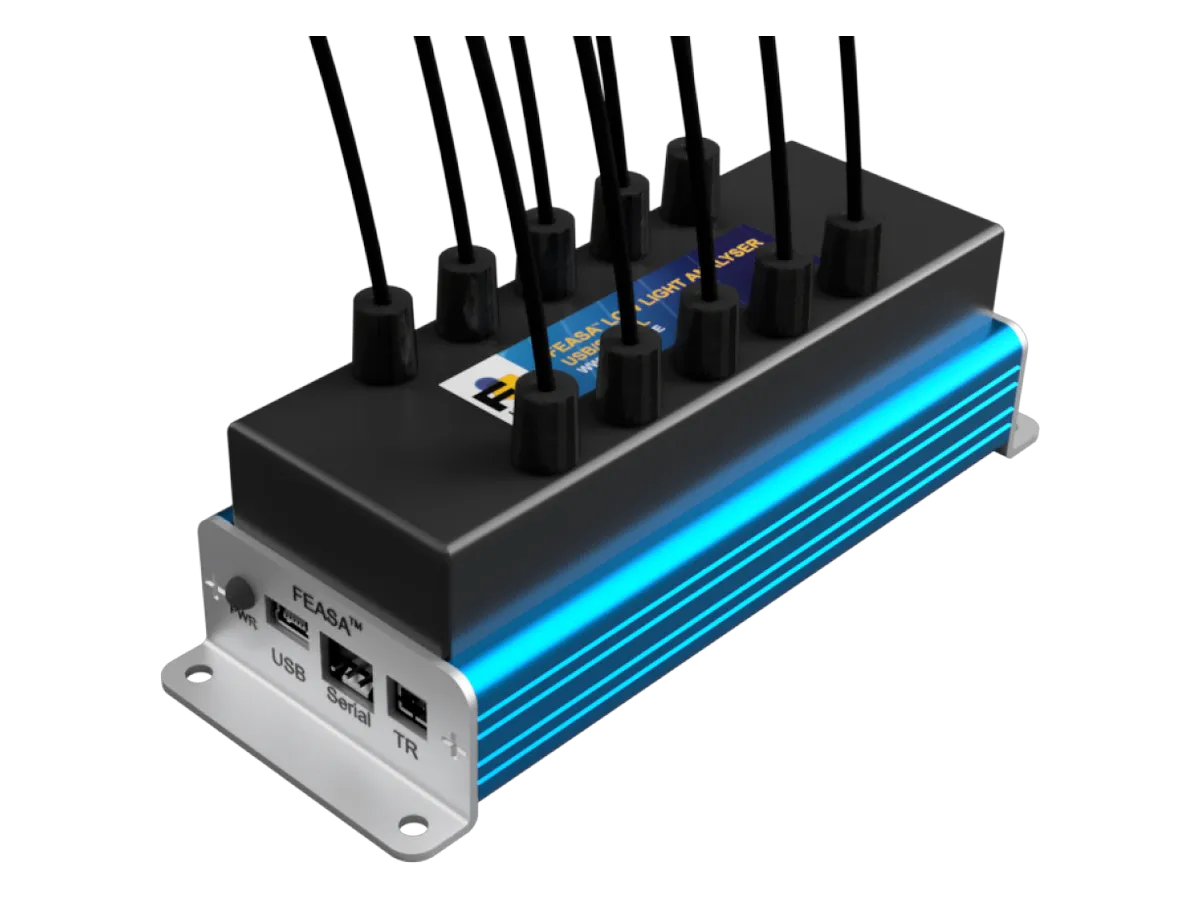

Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 6, 10 | Simultaneous measurement |
| Minimum luminance | < 0.5 cd/m² | High sensitivity |
| Maximum luminance | < 1,000,000 cd/m² | Wide dynamic range |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | Immediately after calibration |
| CIE xy repeatability | ±0.002 | Precision measurement |
| Intensity repeatability | < 1% | Excellent consistency |
| Parameters tested | Intensity, Homogeneity, xy, DW, CCT | Full colour characterisation |
| Supply voltage | 5V | USB bus powered |
| Supply current | 80 mA | Low power consumption |
| Interface | USB, RS232, Daisy Chain | Up to 30 units per port |
| Dimensions (3–6 ch) | 104.5 × 54 × 41 mm | Excl. fibre bend radius |
| Dimensions (10 ch) | 145 × 54 × 41 mm | Confirm with engineering |
| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 2.2 mm OD, 1.5 mm core | Large aperture for low light |
| Min. bend radius | 30 mm | |
| Operating temperature | 0–50°C | Industrial range |
| Compatible optical heads | OH-12, OH-13, OH-14, OH-34, OH-36 | Available on request — confirm with Feasa |
| Compliance | CE, RoHS | EU standards |
| Model numbers | 3A · 5A · 6A · 10A | Channel variants |
Feasa Software Suite
GUI, DLL, LabVIEW and C/C++ — included with every analyser
- GUI — Graphical interface for setup, results display and pass/fail configuration
- Command line interface — Sample CLI for scripted production test integration
- C and C++ examples — Application examples for custom test station integration
- DLL and LabVIEW — Support for NI platform and automated test systems
- Connectivity — USB and RS232 communication — Daisy Chain for multi-unit scaling
- Calibration workflow — Calibrate using a known good reference part or Feasa LED Spectrometer
