Applications

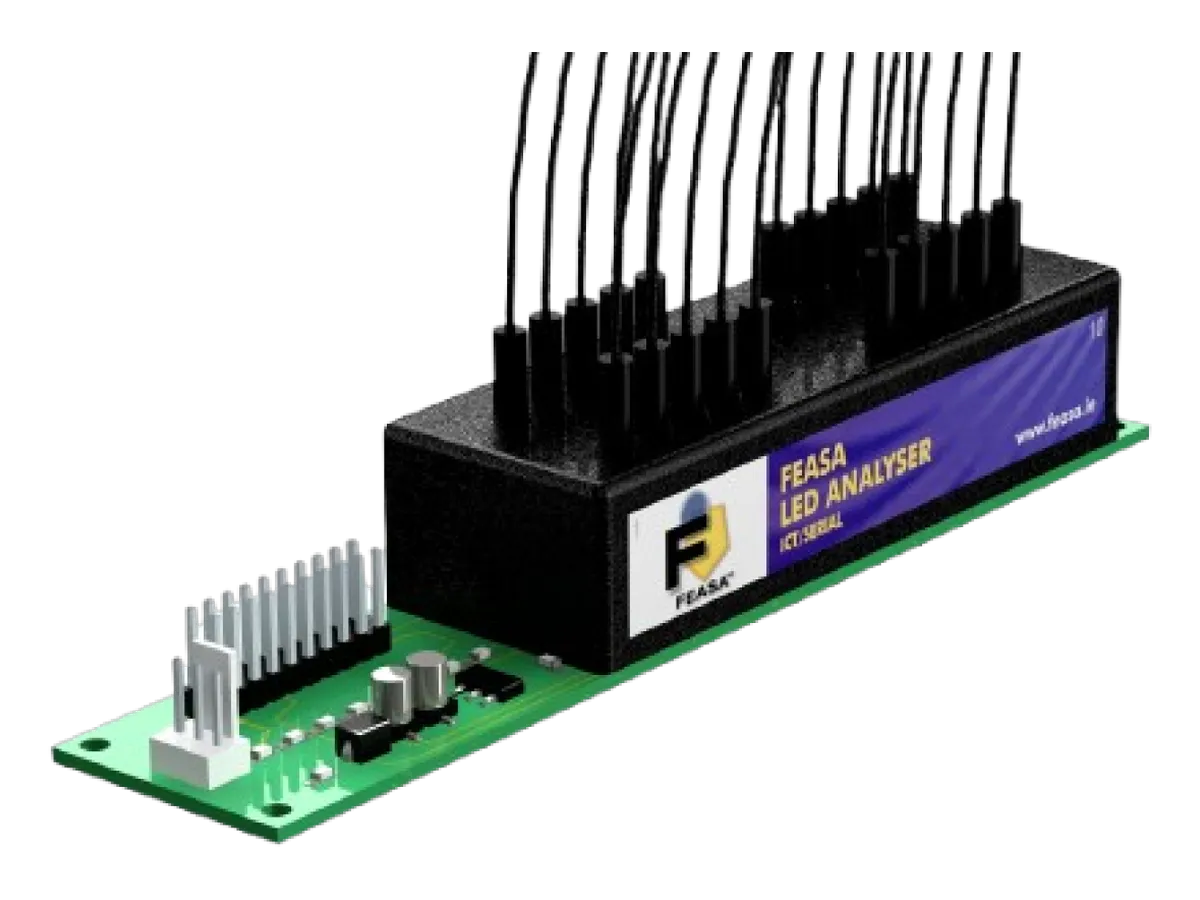

Where our ICT LED Analyser is commonly used.
Automotive
Exterior and Interior Lighting
Indicator LEDs
RJ45, Panels and Signal Indicators
Interior & Avionics
Dashboard and Avionics Lighting
LCD Backlighting
TV, Notebook and Phone Displays

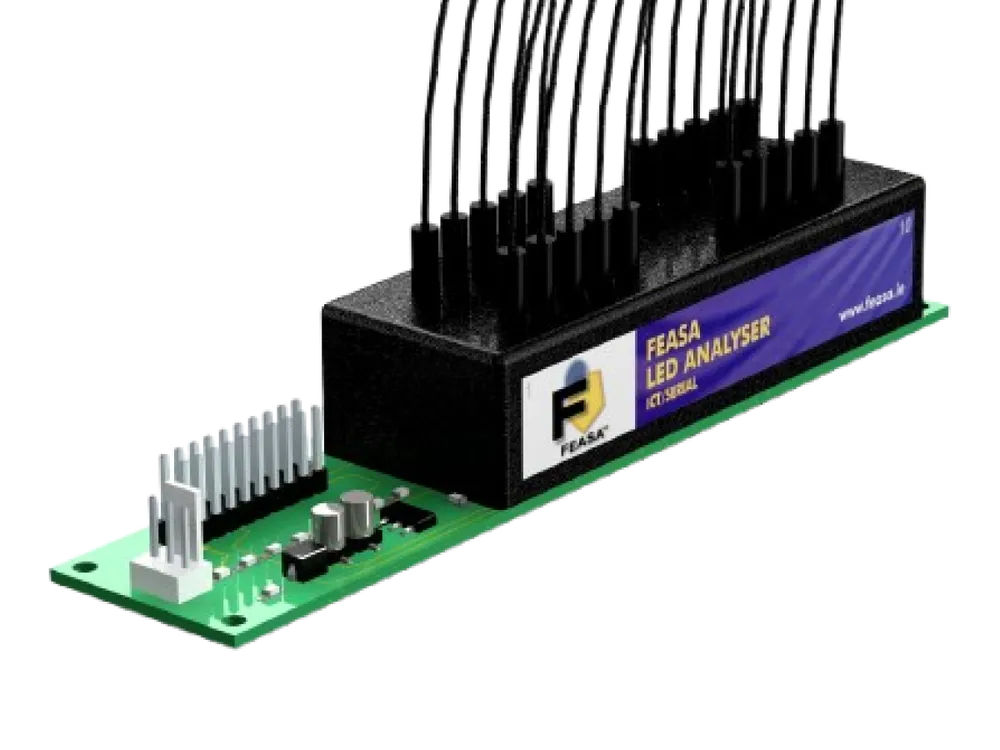

Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 6, 10, 20 | Simultaneous measurement |
| Wavelength range | 450–650 nm | Visible spectrum |
| Dominant wavelength accuracy | ±2 nm @ 590 nm | |
| CCT accuracy | ±200K @ 2856K | Color temperature |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | With OH3 optical head |
| Resolution | 0.0001 chromaticity | |
| Repeatability (DW) | ±1 nm | Excellent consistency |
| Repeatability (CCT) | ±50K @ 2856K | Lab-grade stability |
| Repeatability (CIE xy) | ±0.0015 | Precision measurement |
| Supply voltage | 5.0V | External PSU required for RS232 |
| Supply current | 220 mA | Low power consumption |
| Dimensions (3–10 ch) | 100 × 29 × 29 mm | ICT model |
| Dimensions (20 ch) | 140 × 29 × 29 mm | ICT model |
| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 1.00 mm incl. cladding | Plastic optical fibre |
| Min. bend radius | 15 mm | |
| Operating temperature | 0–50°C | Industrial range |
| Interface | RS232, 20-pin addressable port | No USB on ICT model |
| Baud rate (RS232) | Up to 115,200 baud | External PSU required |
| 20-pin port modes | Frequency Out, Synchronous Serial | ICT platform integration |
| External trigger | Yes | Synchronise with external event |
| Daisy chain | No | ICT model — use RS232 |
| Capture time (Ultra High) | 3 ms | C5 range — per 20-LED cycle |
| ICT read back (Agilent i3070) | 400–700 ms | Frequency-dependent |
| Output formats (RS232) | RGB, HSI, Dom. WL, CCT, CIE xy, CIE u'v' | |
| Output formats (Sync. Serial) | RGBI, HSI, CCT, CIE xy, WSI, Absolute Intensity | |
| Compliance | CE, RoHS | EU standards |
| Model numbers | 3I · 5I · 6I · 10I · 20I | Channel variants |
Feasa Software Suite
Software and ICT drivers included with every analyser
- Agilent i3070 test models — Ready-to-deploy test models for the Agilent i3070 ICT platform
- Teradyne / Genrad test code — Test code for Teradyne and Genrad ICT platforms
- DLL — For custom testing integration
- Programming examples — LabVIEW and C++ examples included

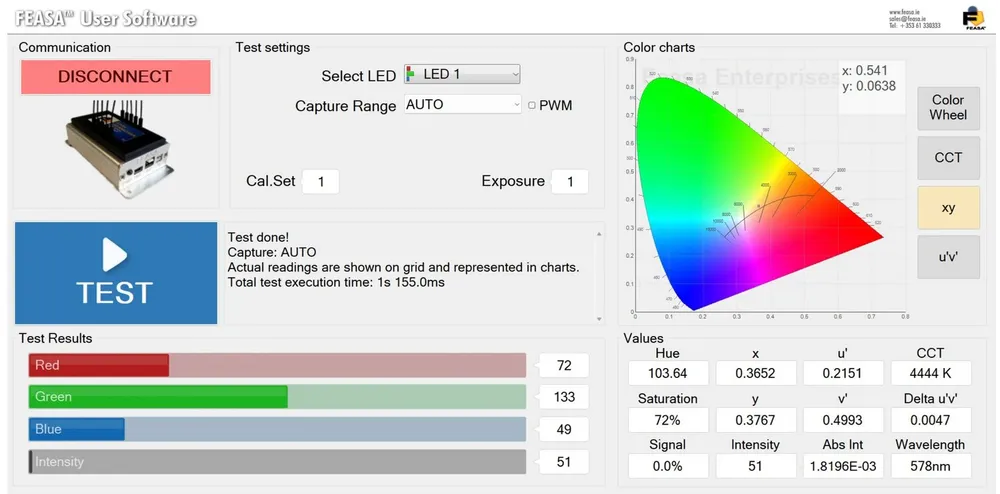

- Feasa Terminal — Direct command-line control and diagnostics
- Feasa User Software — Setup, calibration and pass/fail configuration
