Applications
Where our High Brightness Analyser is commonly used.
Automotive

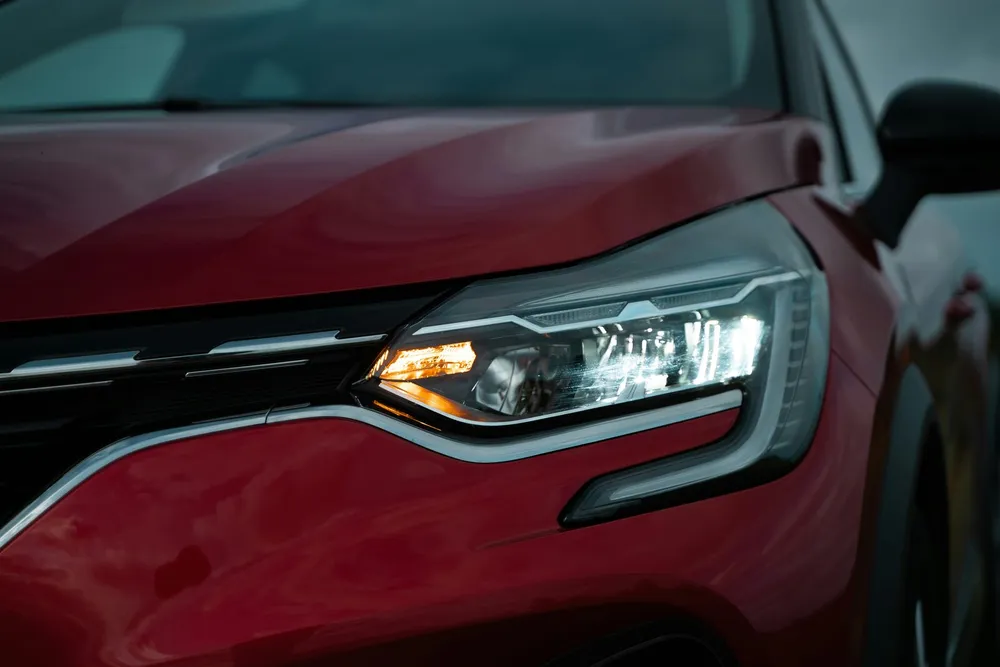

LED and Matrix Headlight Modules
Matrix LED Modules
High-Density Pixel and ADB Systems
Projection Systems
High-Power LED Arrays and Signage
Exterior Lighting
Rear Lights, DRLs and Signal Clusters
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 10, 20 | Simultaneous measurement |
| Wavelength range | 460–650 nm | Visible spectrum |
| Min. LED centre-to-centre | 1.1 mm | With small-aperture HB optical heads |
| Dimensions — Functional 3–10 ch | 86 × 57 × 50 mm | FB model |
| Dimensions — Functional 20 ch | 127 × 57 × 55 mm | FB model |
| Dimensions — ICT 3–10 ch | 100 × 29 × 50 mm | IB model |
| Dimensions — ICT 20 ch | 140 × 29 × 50 mm | IB model |
| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 1.0 mm incl. cladding | Plastic optical fibre |
| Min. bend radius | 15 mm | Confirm with engineering |
| Operating temperature | 0–50°C | Industrial range |
| Interface — Functional (FB) | USB, RS232, Daisy Chain | Up to 30 units per port |
| Interface — ICT (IB) | RS232, 20-pin addressable port | External trigger available |
| Supply voltage | 5.0V | Standard USB power |
| Supply current | 220 mA | Confirm with engineering |
| Output formats | RGB, HSI, Dom. WL, CCT, CIE xy, CIE u'v' | Via USB or RS232 |
| Compatible optical heads | OH-10, OH-11, OH-10G, OH-23, OH-33, OH-26 | HB-rated heads — see optical heads page |
| Accuracy / repeatability | As per standard analyser | Confirm with engineering |
| Compliance | CE, RoHS | EU standards |
| Model numbers — Functional (FB) | 3FB · 5FB · 10FB · 20FB | Channel variants |
| Model numbers — ICT (IB) | 3iB · 5iB · 10iB · 20iB | Channel variants |
Feasa Software Suite
Included with every analyser
- Feasa Terminal — Direct command-line control and diagnostics
- Feasa User Software — Setup, calibration and pass/fail configuration
- Feasa Test Software — Production-line test execution and logging
- Feasa User Cal — User-side calibration management
- DLL/SDK — Programming examples in LabVIEW, C, C++, C#, Python
- ICT variant (IB) support — Test models for Agilent i3070 and Genrad/Teradyne platforms
